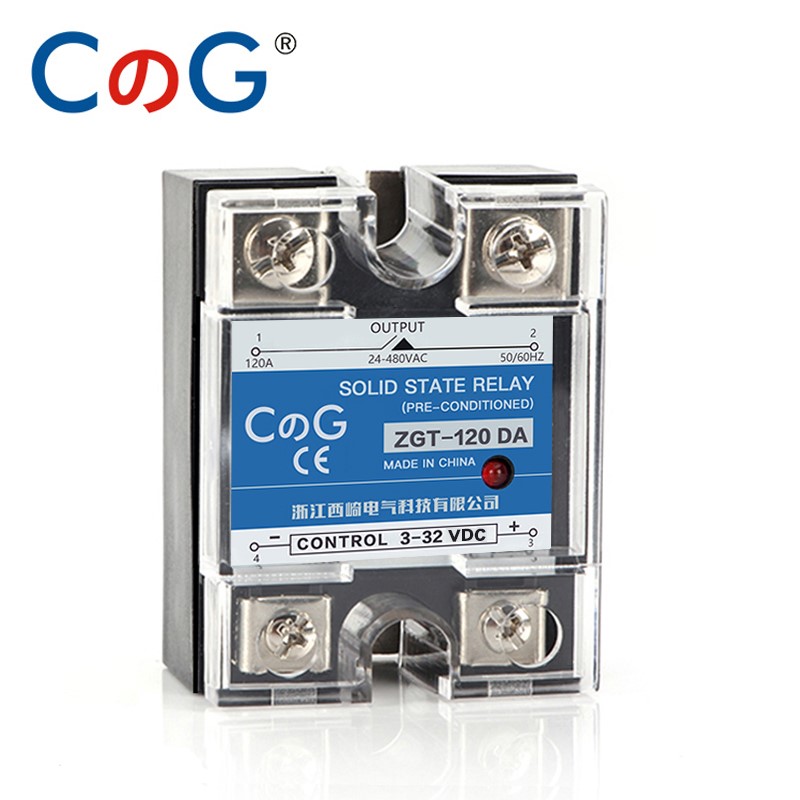

single DC-AC 120DA 150DA

• Parameters

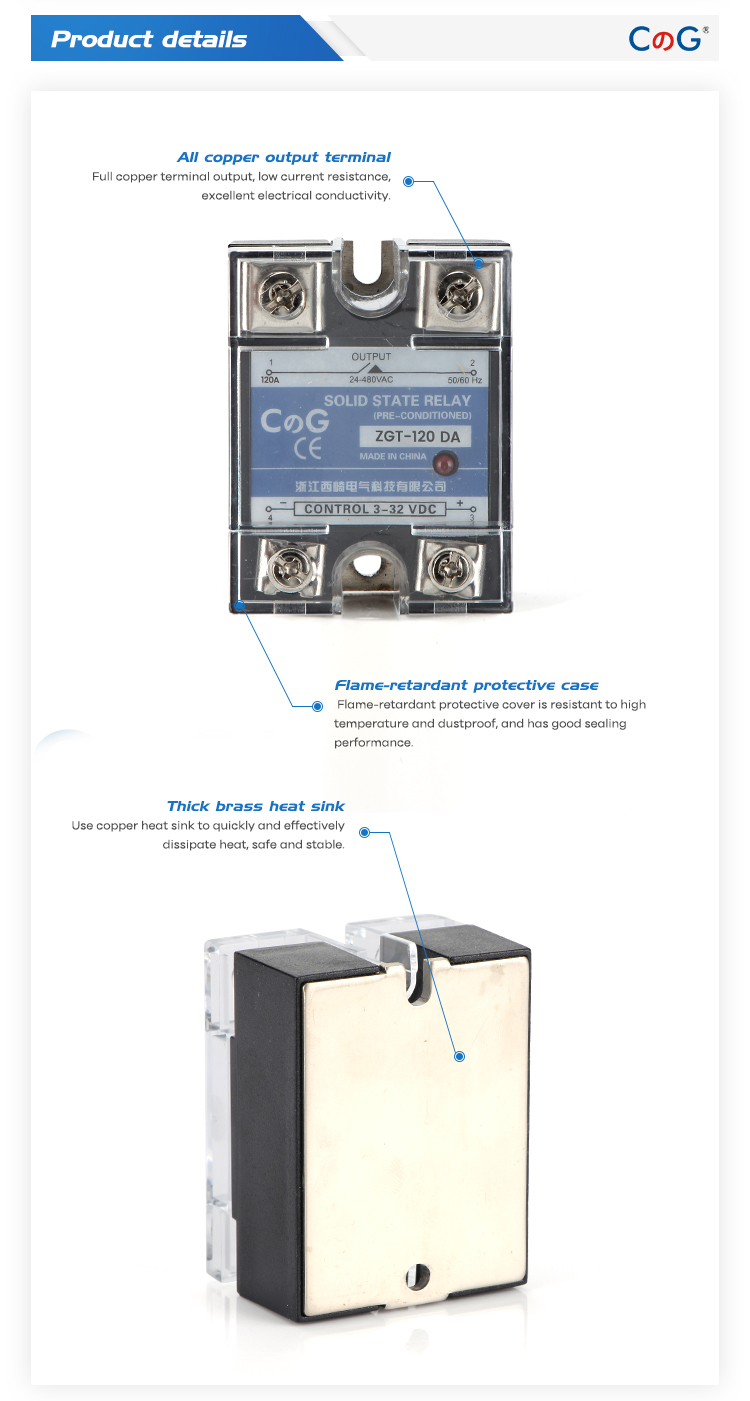

• Features

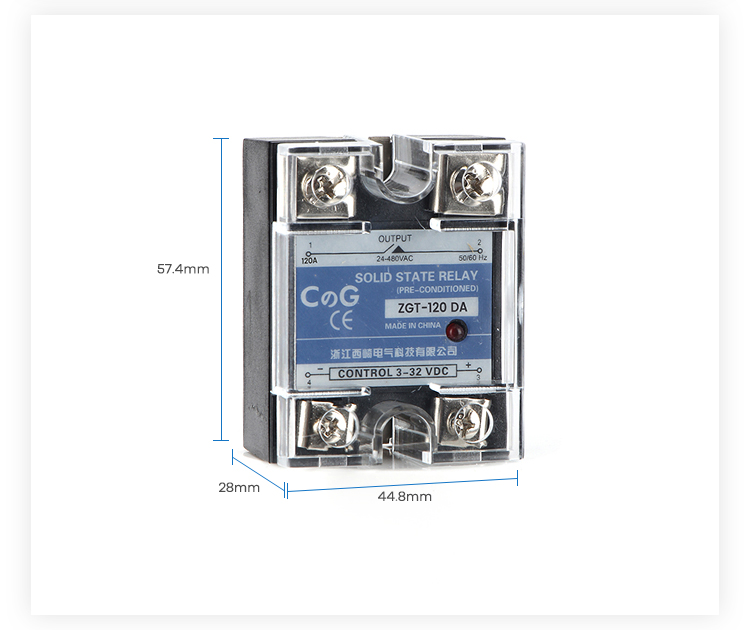

• Dimension Figure
• Package

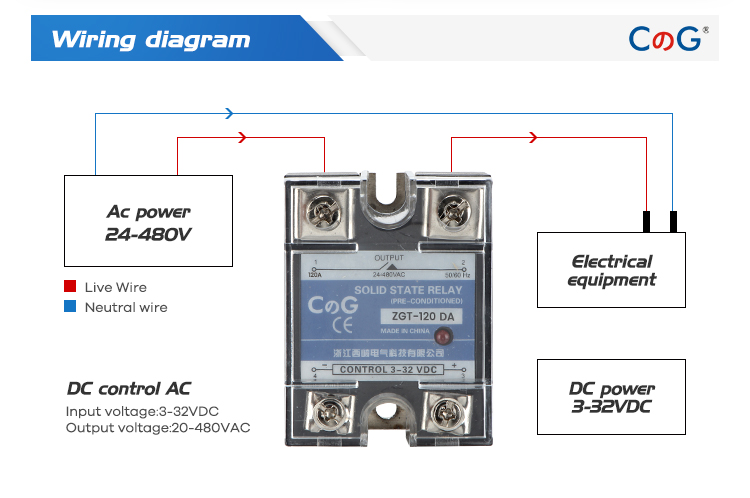

• Wiring Diagram
• Video

Model	ZGT-120DA/150DA
Control Voltage	3~32VDC
Min Control Current	5mA
Max Control Current	25mA
Load Voltage	24-480VAC
Load Current	120A/150A
Insulation Resistance	1000M Ohm/ 500VDC
Off Leakage Current	<=2mA
On Voltage	<=1.5V
On-off Time	<=10ms
Ambient Temperature	-20~+75 ℃
Mounting Method	Screw fixed
