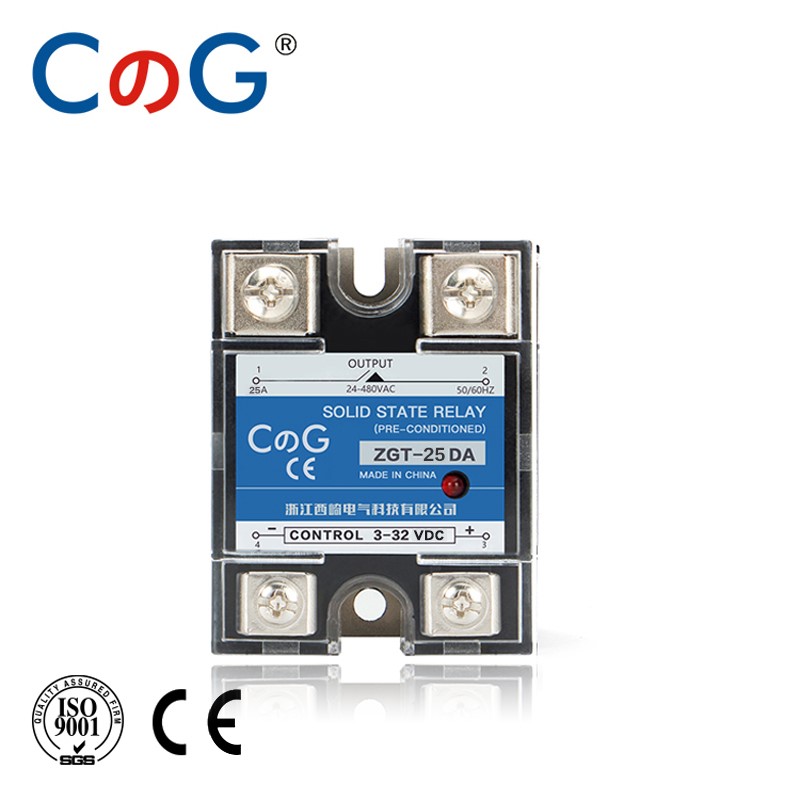

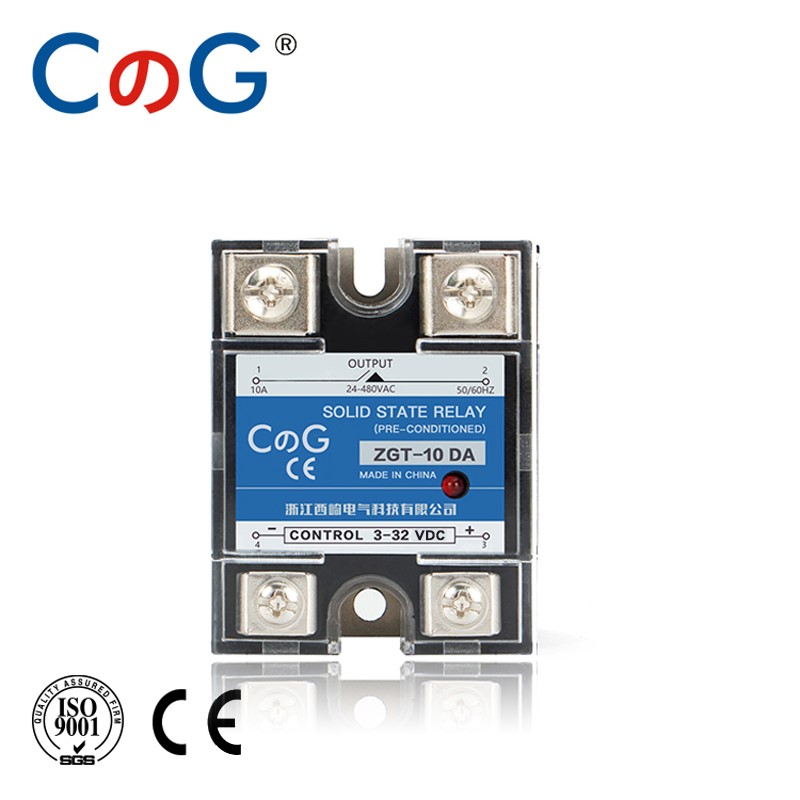

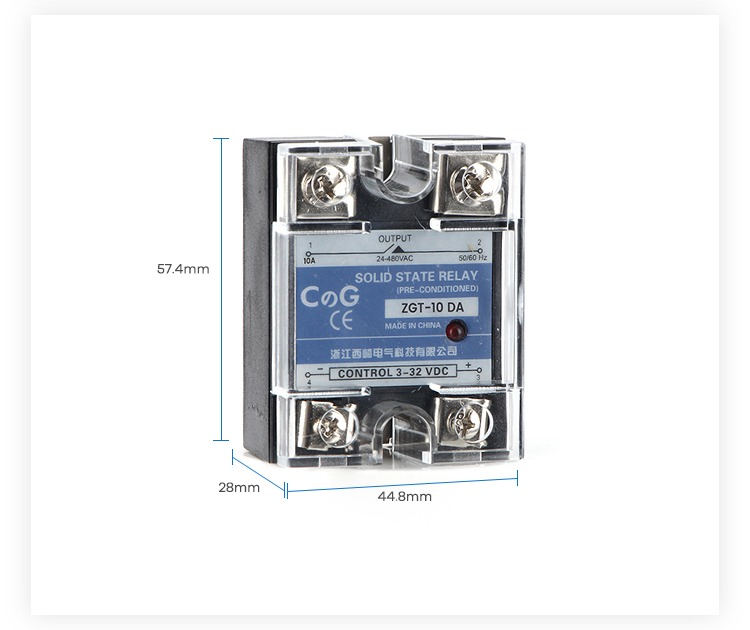

| Model | ZGT-10DA/25DA/40DA |
| Control Voltage | 3~32VDC |
| Min Control Current | 5mA |
| Max Control Current | 25mA |
| Load Voltage | 24-480VAC |
| Load Current | 40A |
| Insulation Resistance | 1000M Ohm/ 500VDC |
| Off Leakage Current | <=2mA |
| On Voltage | <=1.5V |
| On-off Time | <=10ms |
| Ambient Temperature | -20~+75 ℃ |
| Mounting Method | Screw fixed |
