WZPT-01

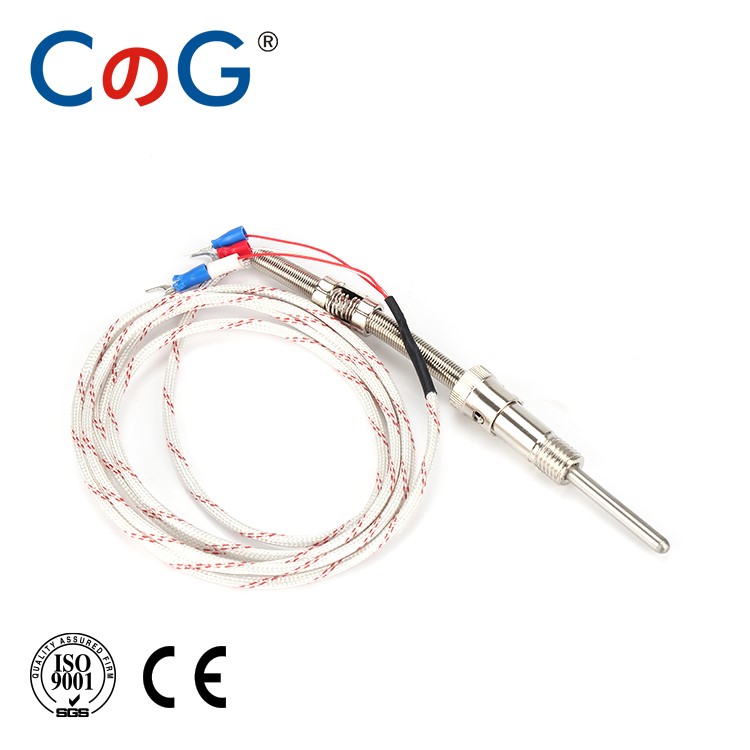

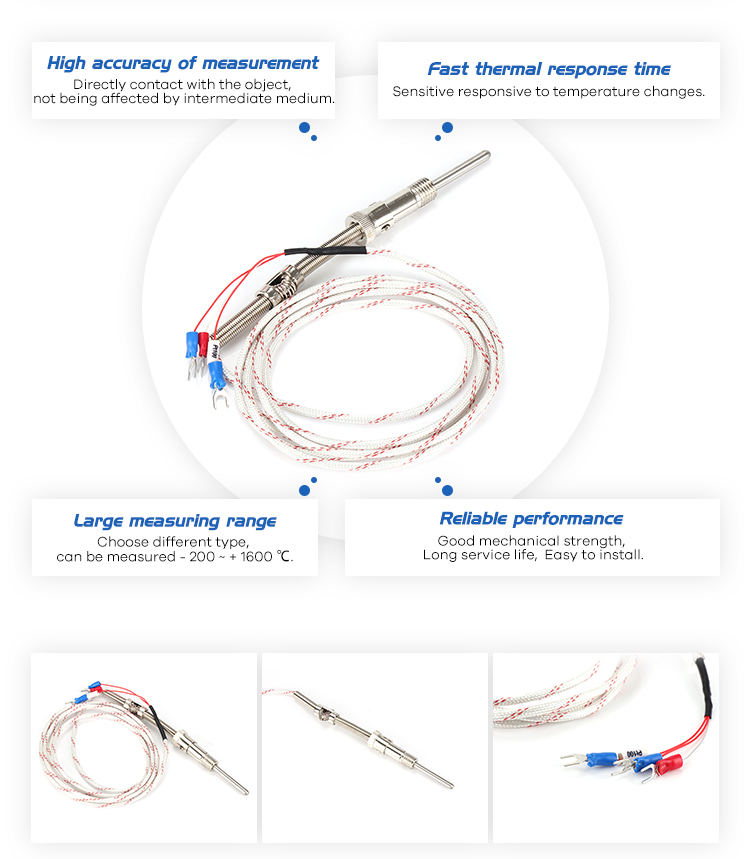

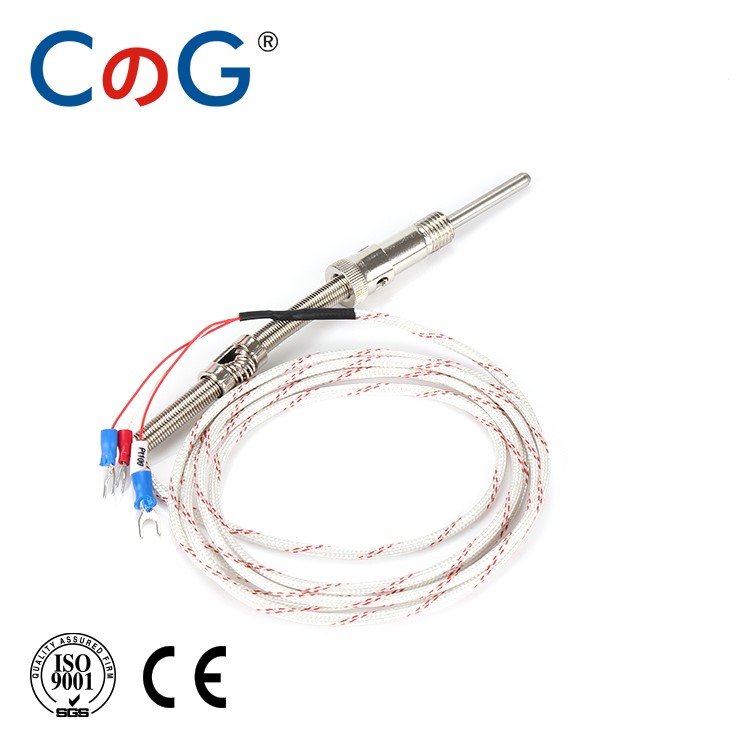

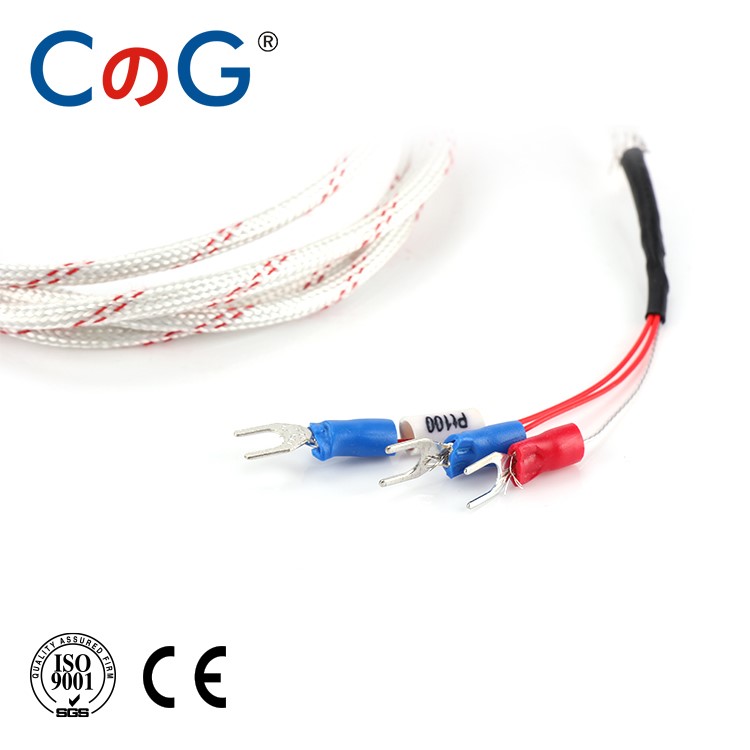

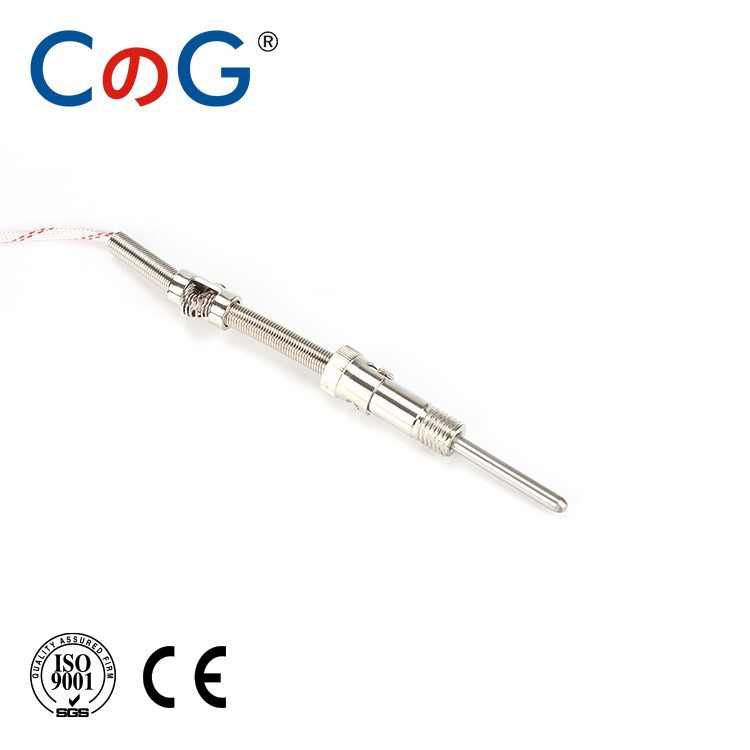

CG WZPT-01 Compression Spring M12 PT100 Type With 1M 2M 3M 5M Wire Cable Thermocouple Connector Temperature Sensor
E-mail Us  PDF Download
【Prev Products】 【Next Products】



How to choose

K: 0~600℃ J: 0~400℃ PT100: -200~420℃ The actual situation depends on your temperature display device. If the device is K, the sensor must be K, if the device is PT100, the sensor must be PT100.

Model Number: WZPT-01 & WZCT-01
Brand Name: CG
Theory: Temperature Sensor
Usage: Industrial
Accuracy: ±1.5℃
Type: PT100,CU50
Temperature range: 0-800degree
cable length: 1-5m(customized)
Wire diameter: 0.3,0.45mm
Certificate: ISO9001
Temperature Sensor Furnace
Type Temp Range
Thermocouple B: PtRh30-Pt6 0~1600℃
R: PtRstrong3-Pt 0~1300℃
S: PtRstrong0-Pt 0~1300℃
N: NiCrSi-NiSi 0~1000℃
K: NiCr-NiSi 0~900℃
E: NiCr-CuNi 0~600℃
J: Fe-CuNi 0~500℃
T: Cu-CuNi 0~350℃
Type Temp Range
RTD Sensor PT100 -200~+650℃
PT1000 -200~+650℃
CU50 -200~+650℃

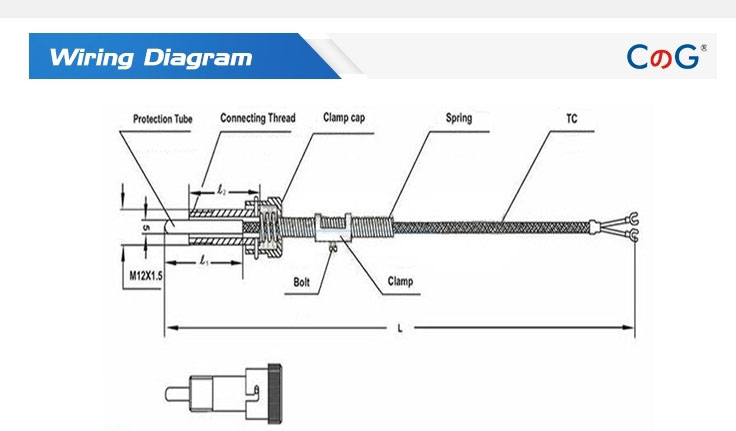

Name Model NO indexing Structure feature

Compression spring type thermocouple

/thermal resistance

WRNT-01 K fixing thread:
M12×1.5
M10×1.5
M8×1.5
WRET-01 E
WRJT-01 J
WZPT-01 PT100
WZCT-01 Cu50
